Stainless Steel AODD Pump

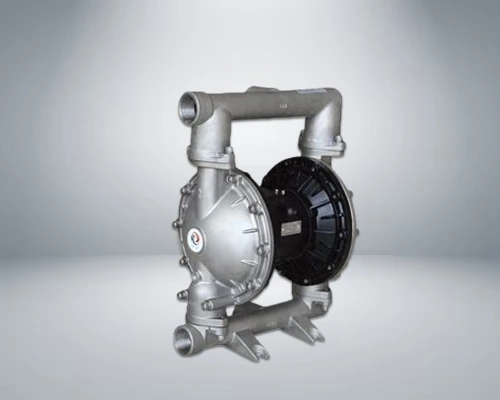

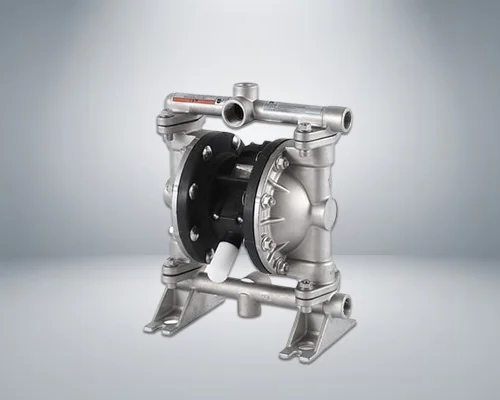

Stainless Steel AODD Pump (SSP)
Our Stainless Steel Pump in the AODD (Air Operated Double Diaphragm) category is built for robust performance in demanding industrial applications. Constructed from high-grade stainless steel, it offers excellent strength, durability, and resistance to corrosion, making it suitable for handling a wide range of fluids including chemicals, oils, and slurries.
Engineered for reliability and low maintenance, this pump ensures smooth, leak-free operation with consistent flow. Its air-operated design provides safe usage in hazardous environments, delivering an efficient and cost-effective solution for heavy-duty operations.
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 4m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 7.6m |
| Max. Particle Diamete | 2.5mm |
| Suction and Discharge Size | 1/2 3/4in /Npt |
| Air Inlet Size | 1/4in |
| Max. Flow Rate | 57l/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 28scfm（0.672m³/min） |
| Main Body Material | Aluminnum Alloy 304SST 316SST |
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 4m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 7.6m |
| Max. Particle Diamete | 2.5mm |
| Suction and Discharge Size | 1/2 3/4in /Npt |
| Air Inlet Size | 1/4in |
| Max. Flow Rate | 57 l/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 28scfm（0.672m³/min） |
| Main Body Material | Aluminnum alloy 304SST 316SST |
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 4m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 8m |
| Max. Particle Diamete | 4mm |
| Suction and Discharge Size | 1in /Npt/F |
| Air Inlet Size | 1/2in |
| Max. Flow Rate | 157 I/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 60scfm（1.7m³/min） |
| Main Body Material | 304SST 316SST |
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 5m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 8m |
| Max. Particle Diamete | 5mm |
| Suction and Discharge Size | 1½in /Npt/F |
| Air Inlet Size | 1/2in |
| Max. Flow Rate | 358 l/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 125scfm（3.5m³/min） |
| Main Body Material | 304SST 316SST |
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 5m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 8m |
| Max. Particle Diamete | 6mm |
| Suction and Discharge Size | 2in /Npt/F |
| Air Inlet Size | 1/2in |
| Max. Flow Rate | 587 l/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 175scfm（4.9m³/min） |
| Main Body Material | 304SST 316SST |
×
