Aluminum Alloy AODD Pump

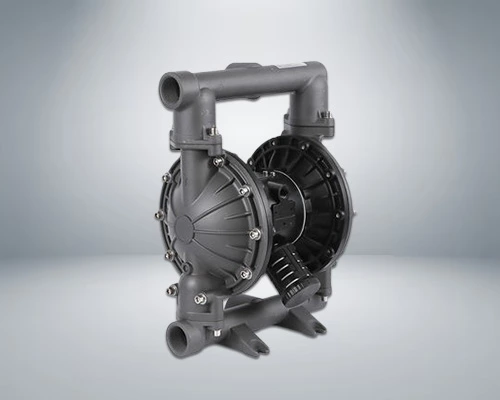

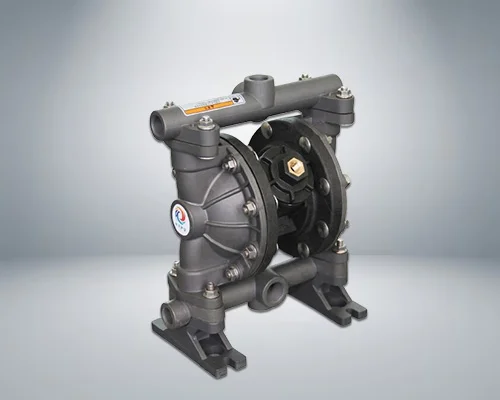

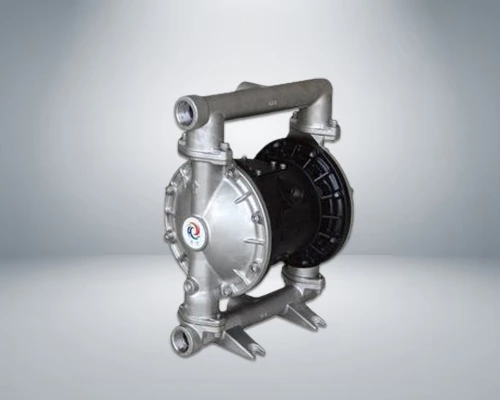

Aluminum Alloy AODD Pump (AAP)
Our Aluminum Alloy Pump in the AODD (Air Operated Double Diaphragm) range is designed for efficient and reliable fluid transfer in various industrial applications. Built with high-quality aluminum alloy, it offers excellent strength, lightweight construction, and good resistance to wear, making it ideal for handling non-corrosive and mildly abrasive fluids.
Engineered for consistent performance and easy maintenance, this pump ensures smooth and leak-free operation. Its air-operated mechanism allows safe use in demanding environments, providing a cost-effective and durable solution for everyday industrial pumping needs.
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 4m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 7.6m |
| Max. Particle Diamete | 2.5mm |
| Suction and Discharge Size | 1/2 3/4in /Npt |
| Air Inlet Size | 1/4in |
| Max. Flow Rate | 57l/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 28scfm（0.672m³/min） |
| Main Body Material | Aluminnum Alloy 304SST 316SST |
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 4m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 7.6m |
| Max. Particle Diamete | 2.5mm |
| Suction and Discharge Size | 1/2 3/4in /Npt |
| Air Inlet Size | 1/4in |
| Max. Flow Rate | 57 l/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 28scfm（0.672m³/min） |
| Main Body Material | Aluminnum Alloy 304SST 316SST |
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 4m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 8m |
| Max. Particle Diamete | 4mm |
| Suction and Discharge Size | 1in /Npt/F |
| Air Inlet Size | 1/2in |
| Max. Flow Rate | 157 I/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 60scfm（1.7m³/min） |
| Main Body Material | Aluminum Alloy |
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 5m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 8m |
| Max. Particle Diamete | 5mm |
| Suction and Discharge Size | 1½in /Npt/F |
| Air Inlet Size | 1/2in |
| Max. Flow Rate | 358 l/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 125scfm（3.5m³/min） |
| Main Body Material | Aluminum Alloy |
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 5m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 8m |
| Max. Particle Diamete | 6mm |
| Suction and Discharge Size | 2in /Npt/F |
| Air Inlet Size | 1/2in |
| Max. Flow Rate | 587 l/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 175scfm（4.9m³/min） |
| Main Body Material | Aluminum Alloy |
| Technical Parameter | |
|---|---|
| Max. Suction Lift | Dry 5m |
| Suction height changes with the different combinations of ball, seat and the diaphragm materials | Wet 8m |
| Max. Particle Diamete | 9.4mm |
| Suction and Discharge Size | 3in /Npt/F |
| Air Inlet Size | 1in |
| Max. Flow Rate | 1060 l/min |
| Max. Head | 84m |
| Max. Air Inlet Pressure | 8.4 bar |
| Max. Air Consumption | 325scfm（9.1m³/min） |
| Main Body Material | Aluminum Alloy |
×
